The TASCAM FR-AV2 is a compact and comprehensive audio recording solution for videographers, combining enhanced 32-bit float point recording with built-in timecode generation to greatly improve efficiency. Ultimate Timecode allows you to integrate industry-standard videography gear, with no need for an external timecode device. And you can wirelessly monitor your audio signals with the optional AK-BT2 Bluetooth adapter.
This product only compatible with AK-BT2 adapter.
IN THE BOX
- FR-AV2 × 1
- Safety guide (with warranty) × 1
- TASCAM ID registration guide × 1
Product Features
- Dual ADCs with enhanced 32-bit float recording for fast setup and worry-free capture
- 2 XLR/TRS Combo inputs with Ultra HDDA Preamps, EIN -127dBu, and 3.5 mm input
- Rec format: 48k/96k/192kHz supported
- Timecode IN/OUT and timecode generation/sync function with high accuracy TCXO
- Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (sold separately)
- 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float

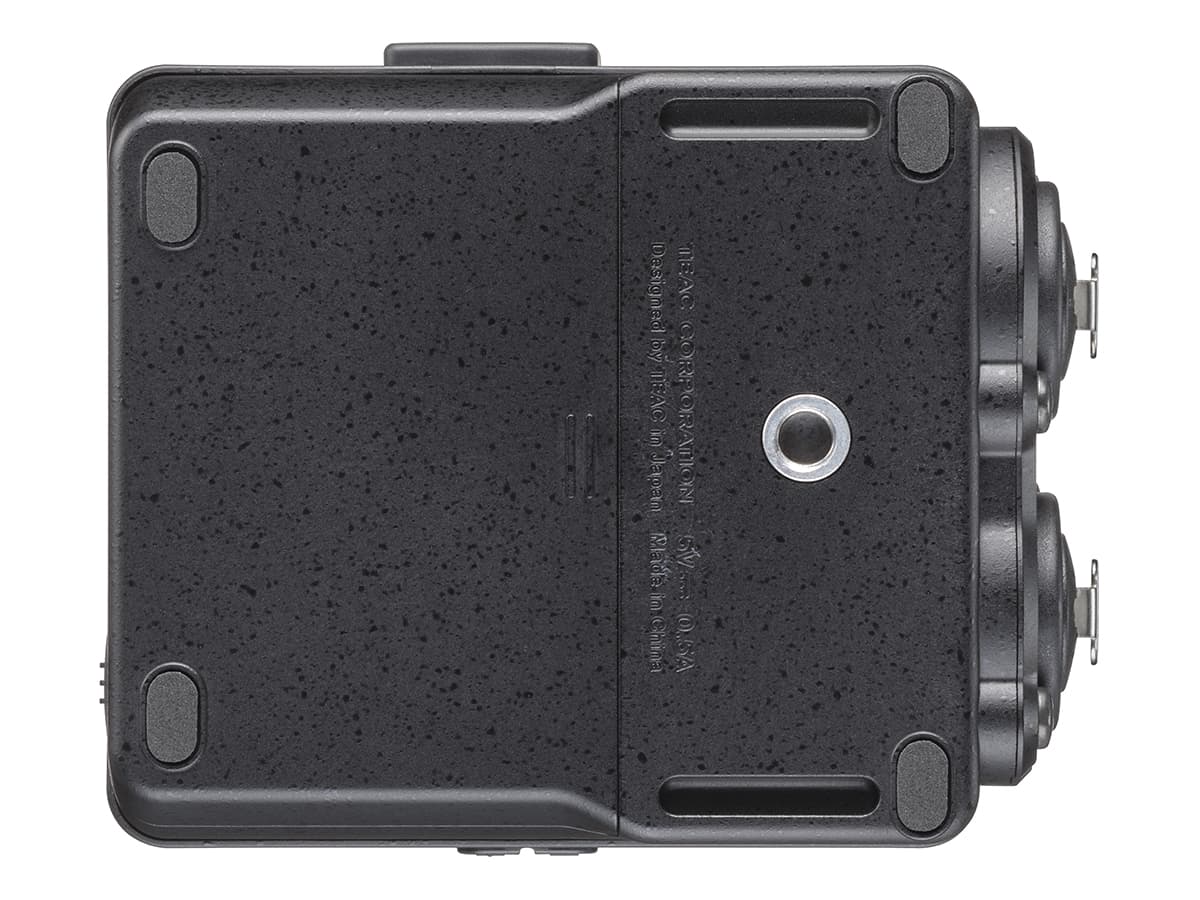

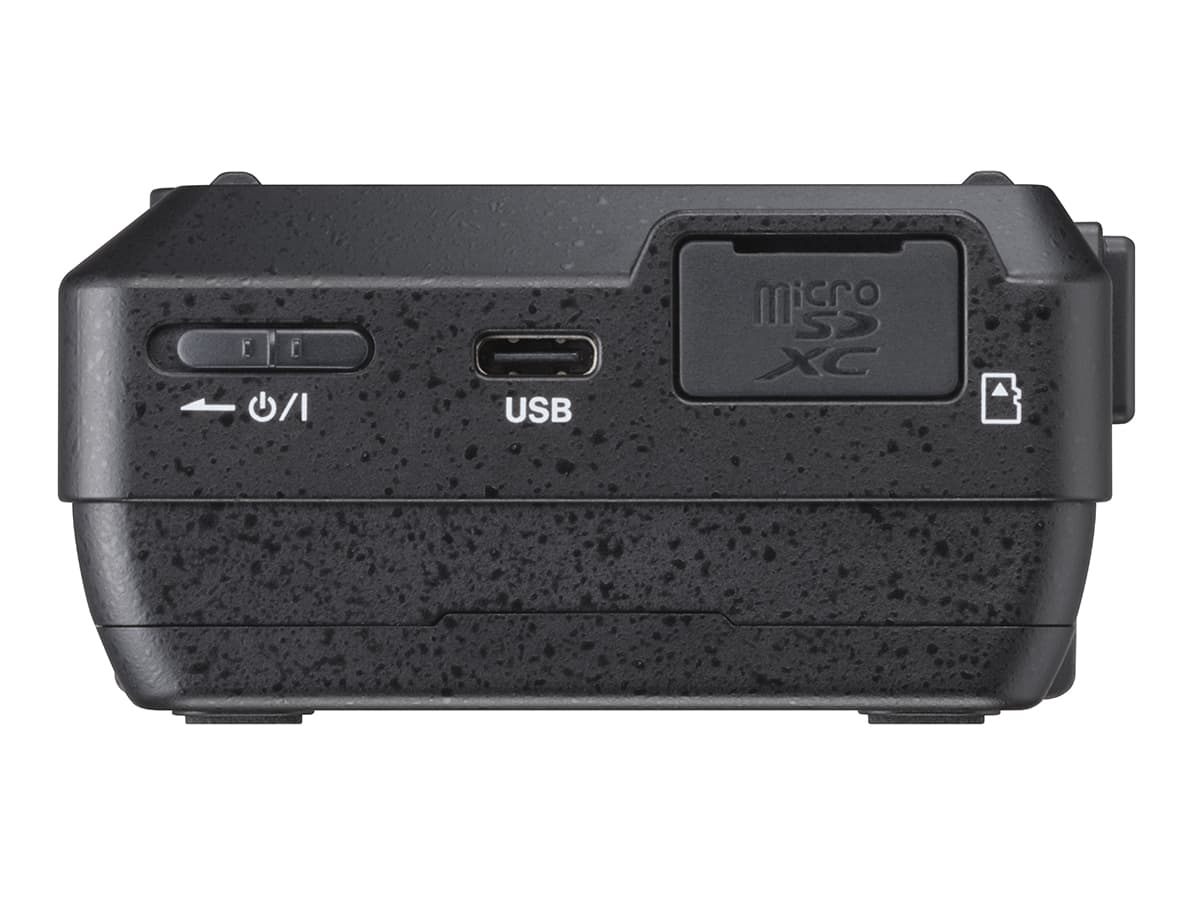

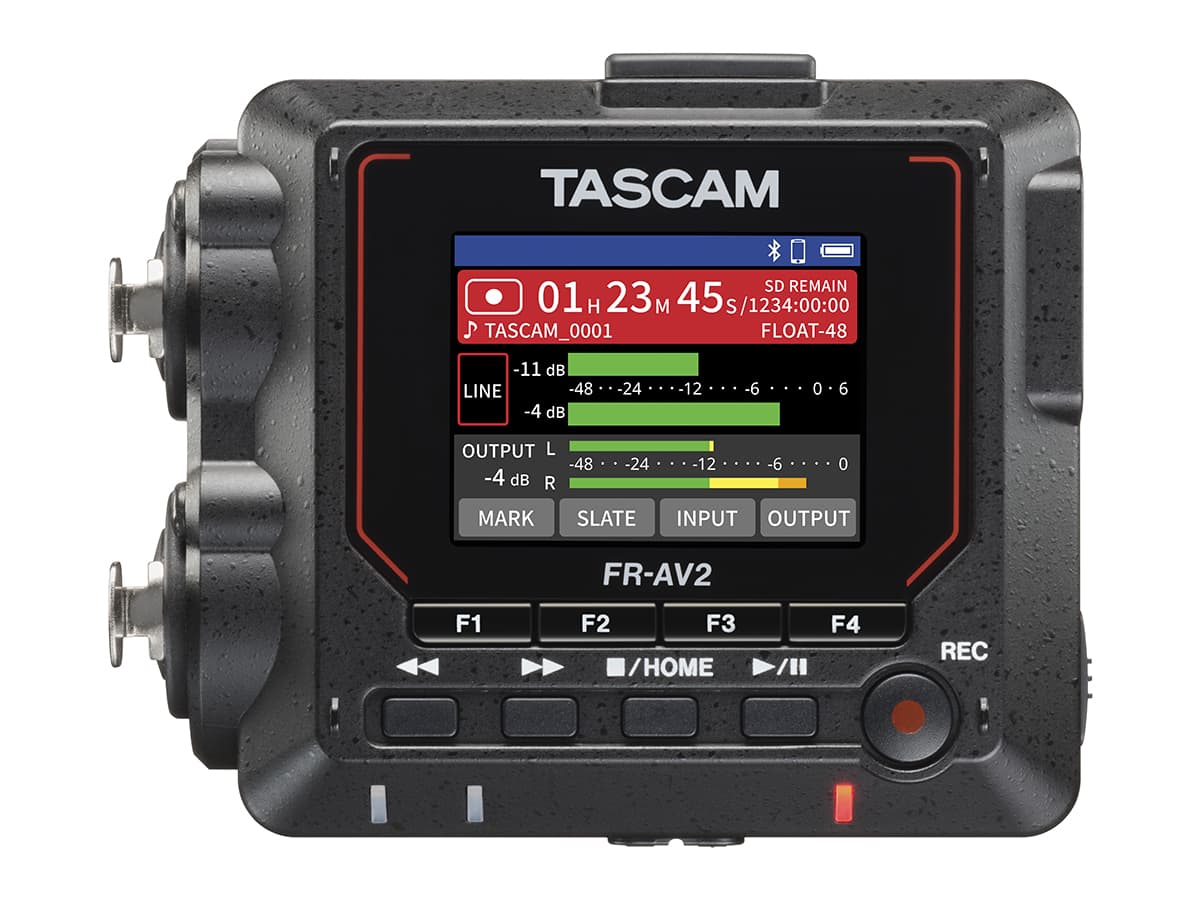

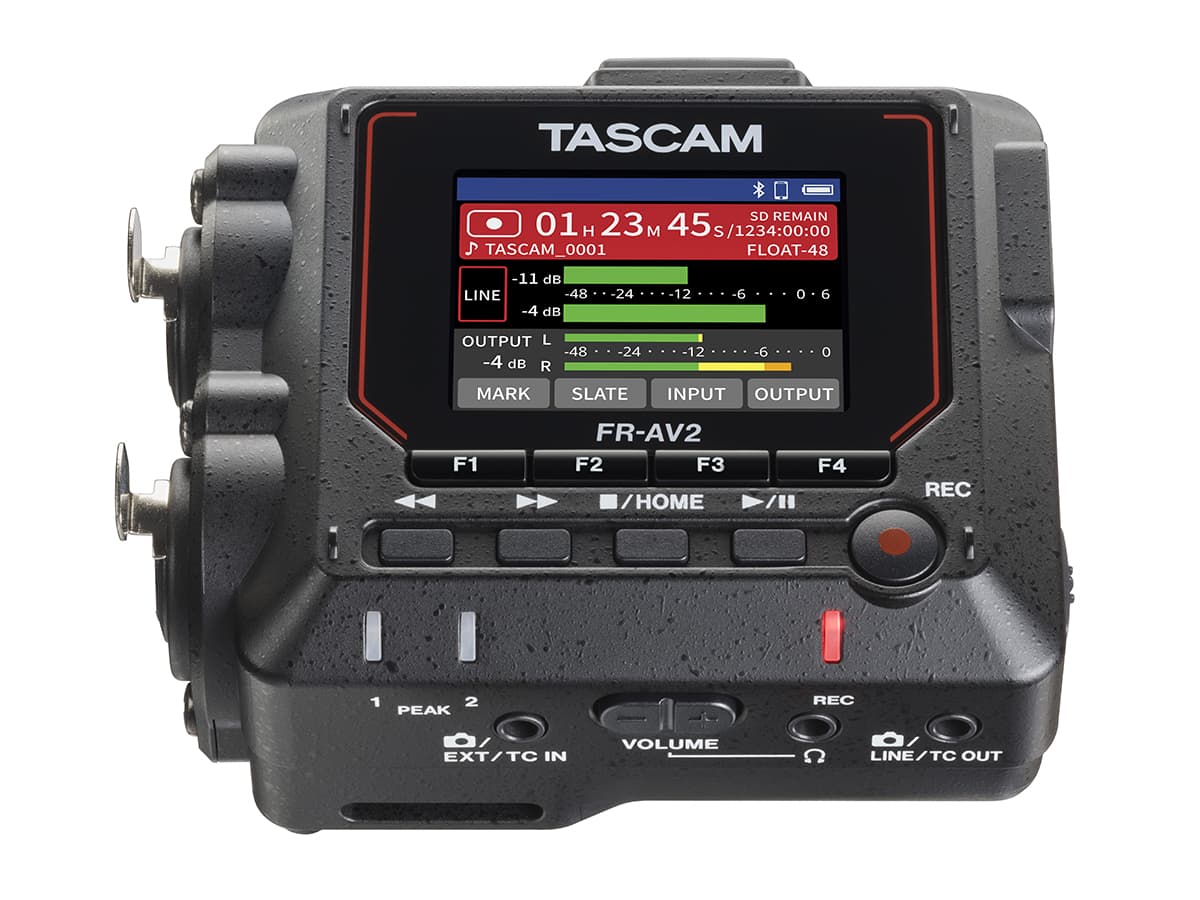

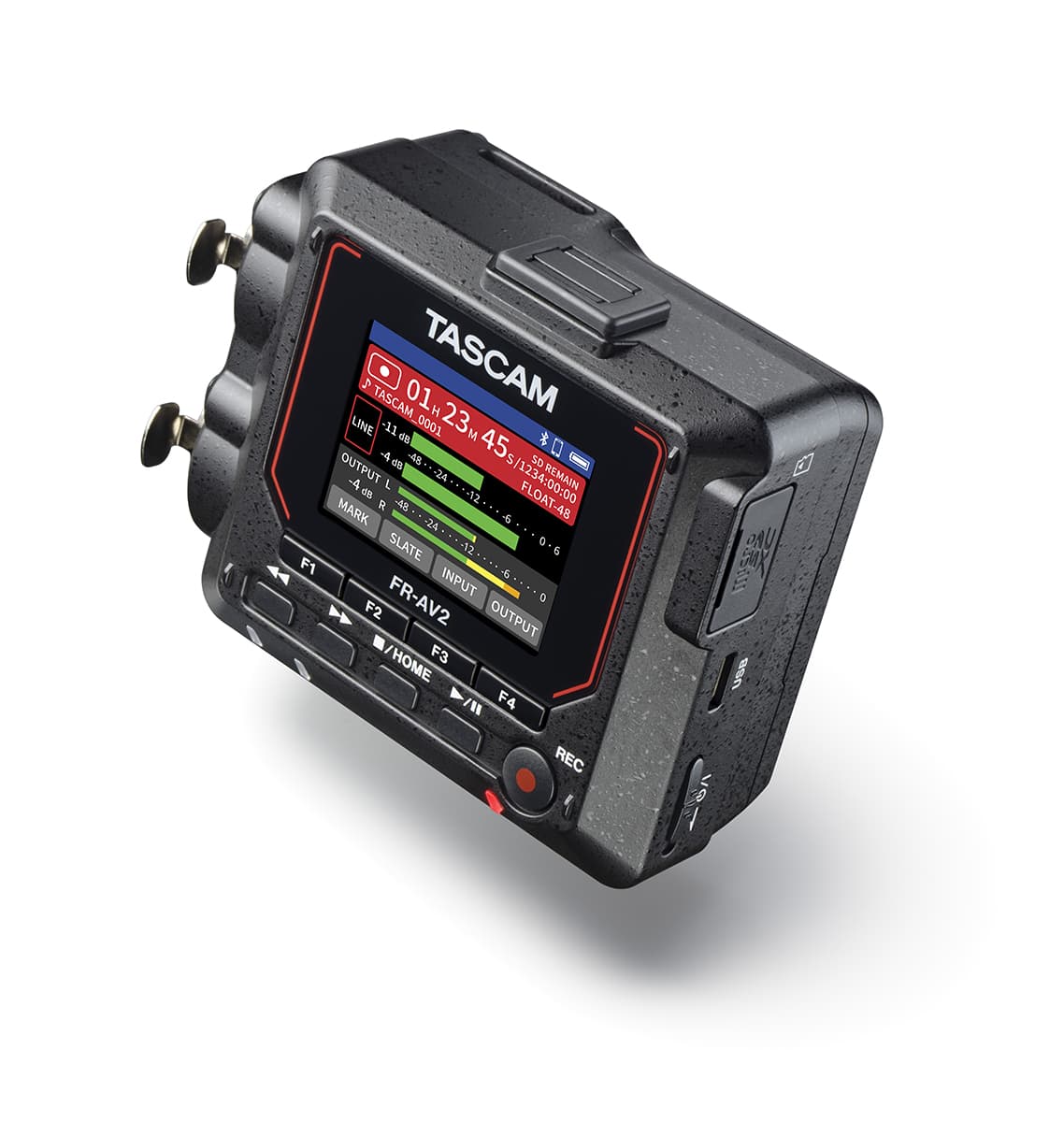

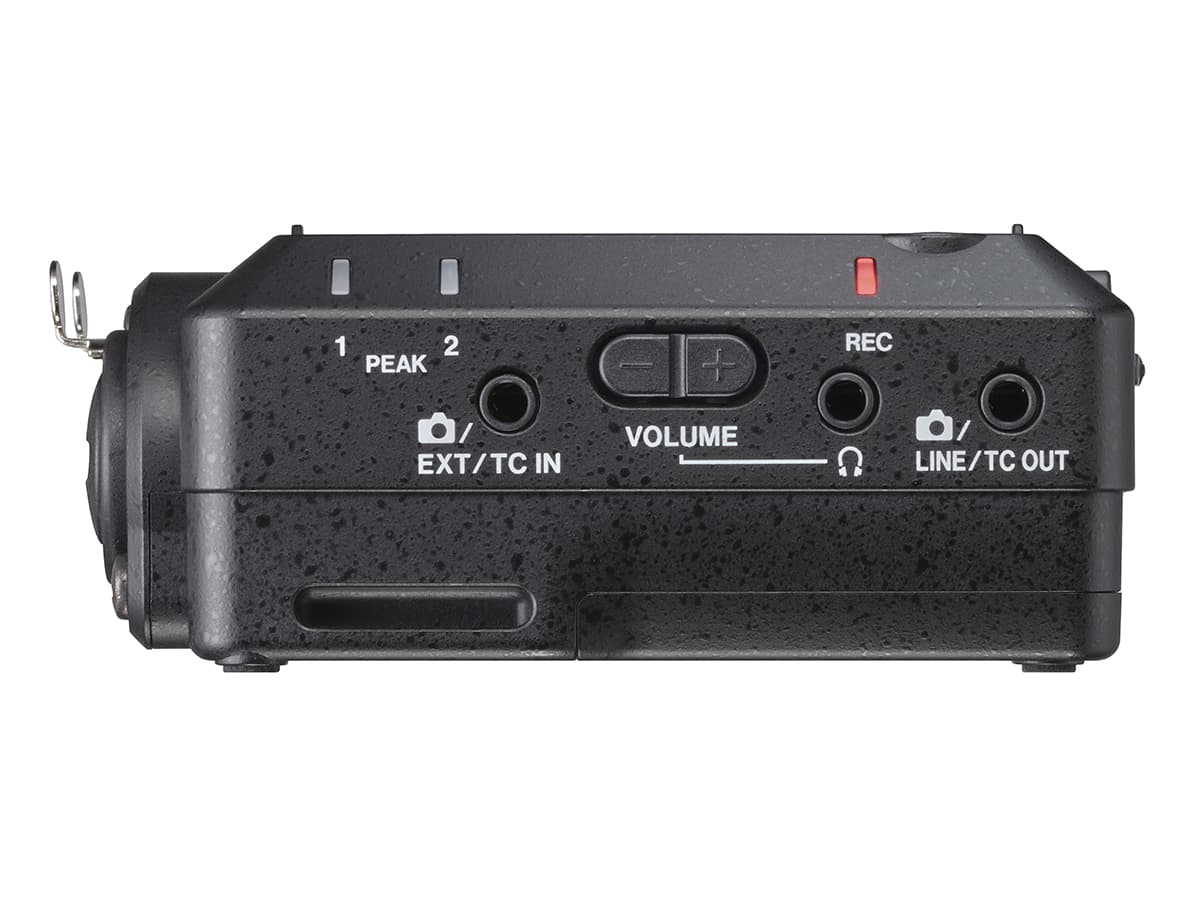

Additional Images
| Dimensions | 80.4 x 99 x 40.3 mm |
| Weight | 267 g / 195 g (with/without batteries) |
Product Specs
- Recording media/file systems microSD cards (64 MB – 2 GB), microSDHC cards (4 GB – 32 GB), microSDXC cards (48 GB – 512 GB)
- Recording / playback formats WAV (BWF)
- Sampling frequency 48 kHz, 96 kHz, 192 kHz
- Quantization bit depth 24-bit/32-bit float
- Maximum number of input channels 2
- Maximum number of recordable tracks 2
- Analog audio input ratings
- [MIC] input is selected
- Maximum input level +4 dBu
- Minimum input level -76 dBu
- Input impedance 2.0 kΩ or more
- Phantom power +24V / +48V
- *selectable when [MIC] input is selected
- [LINE] input is selected
- Maximum input level +24 dBu
- Nominal input level +4 dBu (GAIN setting at minimum)
- Input impedance 8 kΩ or more
- Line input (unbalanced) Camera/EXT/TC IN jack (can provide plug-in power)
- Connector 3.5mm (1/8″) stereo mini jack
- Maximum input level +1 dBV
- Nominal input level – 19 dBV (GAIN setting at minimum)
- Minimum input level – 79 dBV
- Input Impedance 6.0 kΩ or more (when plug-in power is turned off)
- 1.6 kΩ or more (when plug-in power is turned on)
- Plug-in power +2.5 V/+5.0 V
- TC IN (Tip: Timecode IN, Ring: −, Shield: GND)
- Signal level range 0.5Vp-p to 5.0 Vp-p
- Input impedance 10 kΩ or more
- Analog audio output ratings
- Line output (unbalanced) Camera/LINE/TC OUT jack
- Connector 3.5 mm (1/8″) stereo mini jack
- Camera/LINE (Tip: L ch, Ring: R ch, Sleeve: GND)
- Maximum output level +6 dBV
- Nominal output level – 10 dBV (with – 16 dBFS as standard)
- Output impedance 210 Ω
- TC OUT
- LTC selected (Tip: Timecode OUT, Ring: −, Shield: GND)
- Output level 1.8 Vp-p
- Output impedance 1.0 kΩ
- When MIC selected (Tip: Timecode OUT, Ring: R ch, Shield: GND)
- Output level 50 mVp-p
- Output impedance 110 Ω
- Headphone output: headphone jack
- Connector 3.5mm (1/8″) stereo mini jack
- Maximum output 50 mW + 50 mW
- (THD + N less than 0.1% into 32 Ω load)
- Recommended headphone impedance 16–400 Ω
- Connector USB Type-C
- Transfer format USB2.0 High Speed
- Device Class Mass Storage Class
- USB Audio Class 2.0 (USB Class Compliant)
- USB Audio
- Sampling frequency 48 / 96 kHz
- Quantization bit depth 24-bit / 32-bit float
- Number of inputs 2 channels * output from this unit
- Number of outputs 2 channels *input to this unit
- Time code input / output
- Format According to SMPTE ST 12-1 (LTC)
- Frame rate 23.98, 24, 25(50), 29.97(59.94), 29.97DF(59.94DF), 30(60) fps *
- * Half frame rate time code is used for high frame rate videos of 50 fps or higher.
- Bluetooth device connector For Bluetooth adapter (AK-BT2) only
- Power 3 AA batteries (alkaline, NiMH or lithium-ion)
- USB bus power from a computer, etc.
- TASCAM PS-P520U AC adapter (sold separately)
- Power consumption 3.8 W (maximum)
